TechnoNova s.r.o. - Products/Services

Price: On request

Details:

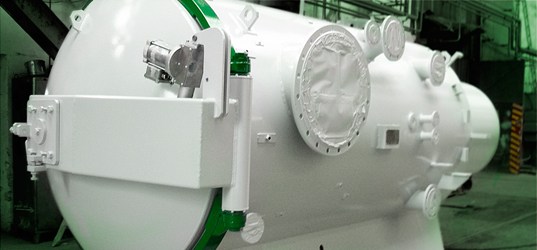

Our company is providing production of Pressure Devices, Vacuum Devices, Heat Exchangers, Tanks and Constuktions and Devices. In this work we use the following technical procedures:

 Welding
– welding of materials class 11, 12 ,17, aluminium and alloys, copper and alloys and titanium
– welding by methods ROZ, MIG, MAG – solid and tube rod and TIG
– fusion welding on semi-automatic machine
– flame welding
– positioning of welded pieces on various positioning devices and turning tables

Chipping machining
– lathe turning up to ? 1 250 mm, lathe turning on carrousels up to ? 3 300 mm, milling up to 440 x 1 400 x 450 mm,
– milling and drilling on horizontal drilling machines up to dimensions 2 000 x 2 000 x 1500 mm
– drilling ( drilling machines range VR – VR 6 )
– planning 1 600 x 10 000 x 1 600 mm, grinding of plane and cylindrical areas
– lathe turning on the new CNC machine LTC-35 CM

Shaping
– bands curling up to 80 x 80 mm and pipes up to ? 108 mm
– sheets curling up to thickness 25 mm
– sheets bending on edging press up to thickness 6 mm
– pressing on eccentric and hydraulic presses up to 70 t

Material cutting
– timber and profiles sawing on a band saw up to ? 350 and profile 3150 x 220 mm
– sheets cutting on oxygen-acetylen CNC machine up to thickness 300 mm
– plasma cutting by portable device up to thickness 28 mm
– sheets cutting by scissors up to thickness 25 mm, profiles cutting

Surface treatment
– areas sand blasting by steel grit in the chamber 3 000 x 2 550 x 10 000 mm, or in open space
– paint application by brush or by air spraying

Rubber coating
– vulcanizing in vulcanizing boilers up to ? 2 000 x 8 000 mm
– pressing of rubber parts in the mould
– surface and shaped rubber coating

Heat treatment
– annealing in the furnace 1 000 x 2 200 x 900 mm

Non-destructive tests
– defectoscopic testing of inner and outer defects by capillarity method and RTG radiation
– thickness measuring by ultrasonic thickness gauge
– flaws detection on rubber and plastic protection coatings by electro-sparking method
– pressure tests
– vacuum tests

Technological possibilities of our company are extended bycooperation with many companies.
